RCF500C Crawler Mounted Hydraulic Water Well Drill Rig 500m Hydraulic Portable Drilling Machine
Product Description
RCF500C deepwater well drilling rig is a product independently developed by our company. The new generation of down-the-hole drilling rigs combined with higher pneumatic power play an important role in increasing drilling speed.
Adopting the latest model and advanced hydraulic technology, it has low consumption, large rotation torque, and convenient hole deflection. It is mainly used for resource exploration and drilling of hydrological wells, civil water wells, agricultural irrigation and other projects.
Made of high-quality materials, stylish and compact design, our drilling rigs are more efficient, with low failure rate, more economical and durable, and high comprehensive cost performance. Our water well drilling rigs have been truly verified by the market, and most customers have positive feedback
Technical Parameters
| Model | RCF500C |
| Weight(kg) | 11500 | Drill pipe diameter(mm) | Φ102 Φ108 Φ114 |
| The hole diameter(mm) | 140-350 | Drill pipe length(m) | 1.5m 2.0m 3.0m 6.0m |
| Drilling depth(m) | 500 | Rig lifting force(T) | 26 |
| One-time advance length(m) | 6.6 | Rapid rise speed(m/min) | 20 |
| Walking speed(km/h) | 2.5 | Fast feeding speed(m/min) | 40 |
| Climbing angles(Max.) | 30° | Width of loading(m) | 2.85 |
| Equipped capacitor(kw) | 118 | Hoisting force of winch(T) | 2 |
| Using air pressure(MPA) | 1.7-3.5 | Swing torque(N.m) | 7500-10000 |
| Air consumption(m³/min) | 17-42 | Dimension(mm) | 6200×2200×2650 |
| Swing speed(rpm) | 40-130 | Equipped with hammer | Medium and high wind pressure series |
| The penetration efficiency(m/h) | 15-35 | High leg stroke(m) | 1.7 |
| The engine brand | Yuchai engine |
Advantage and features
1.Easy and flexible full hydraulic control
The rig's speed, torque, thrust axial pressure, reverse axial pressure, thrust speed, and lifting speed can be adjusted at any time to meet the requirements of different drilling tool working conditions and different construction processes
2.Top-drive slewing propulsion lift
It is easy to connect and disconnect the drill pipe, shorten the auxiliary time, and also facilitate drilling with the pipe.
3.Multifunctional drilling
Various drilling processes can be used on this rig, such as: down-the-hole drilling, through-air reverse circulation drilling, gas lift reverse circulation drilling, cutting drilling, roller drilling, tube drilling, and Core drilling under development and more. The drilling rig can be equipped with mud pumps, foam pumps and generators according to user needs. The rig is also equipped with various hoists as standard.
4.High efficiency
Due to the full hydraulic and top-drive slewing propulsion lifting, it is suitable for various drilling processes and various drilling tools, with convenient and flexible control, fast drilling speed and short auxiliary time, so the operation efficiency is high.

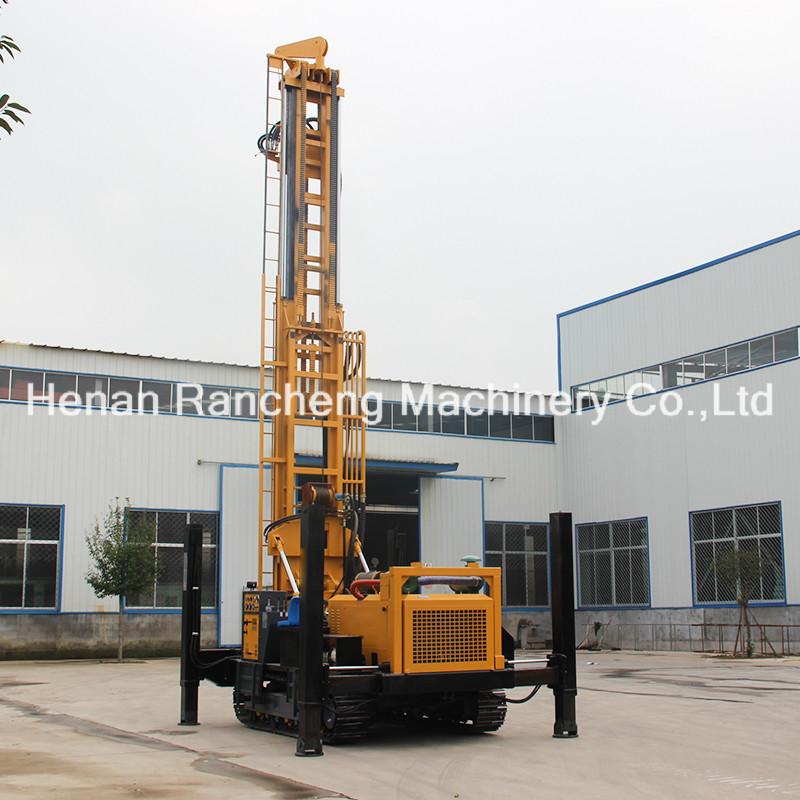

Machine Picture Display
|
|
RCF500C Crawler Mounted Hydraulic Water Well Drill Rig 500m Hydraulic Portable Drilling Machine Images
|
