RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation And Mini Pile Drilling
Product Description
The RCKM-30S Small Crawler Pneumatic Pile Driver is a versatile, multi-functional machine designed for various piling and drilling tasks. It is suitable for solar screw pile drilling, auger pipe drilling, and DTH (Down-The-Hole) drilling. This compact and efficient pile driver is particularly well-suited for solar pile installation, roadside fence construction, and mini pile drilling, offering high precision and reliability in various construction environments.
Product Specifications
| Main Technical Parameters |
| Model: | RCKM-30S rubber crawler mounted mini pile driver |
| Rig weight: | 1.2t |
| Dimensions (L×W×H): | 2300*1100*2300mm |
| Engine power: | 28HP gasoline engine |
| Rotary head torque | 3200N.m |
| Hydraulic oil pump | Single pump |
| hydraulic loading system | Cylinder chain pressure |
| Hydraulic working pressure | 20Mpa |
| Way of walking | Crawler gearbox walking |
| Walking speed: | 7-15km/h |
| cooling system | Hydraulic cooler |
| Carriage travel | 2.8m |
| Piling height | 1-3m |
| Borehole diameter | 50-300mm |
| Borehole depth : | 1-30m |
| Air consumption | 6m3/min |
| Adapt to rock types | Medium hard rock ,F=8-12 |
| Climbing ability: | 35° |
| Hydraulic legs | 2 |
Product Features
- Powerful Engine & Efficient Performance:
The RCKM-30S is equipped with a 28HP gasoline engine and features a hydraulic mechanical transmission, ensuring high efficiency, easy shifting, and time-saving operations. The machine is designed to handle multi-angle piling and provides high precision, making it suitable for demanding field conditions.
- Advanced Hydraulic System:
The pile driver is equipped with an advanced hydraulic system that supports smooth operations in challenging environments. It uses a hydraulic travel motor and crawler travel device, ensuring excellent maneuverability and the ability to operate in harsh conditions such as swamps, quagmires, and potholes.
Constructed with thickened steel plates and incorporating secondary welding technology, the machine ensures long-lasting durability and prevents shaking or tilting during operation, enhancing safety and stability on the job site.
This piling rig is suitable for a wide range of applications, including solar photovoltaic power station foundation support piles, high-speed railway contact network support piles, slope protection piles, and other civil and municipal construction projects.
- Adaptability to Various Geological Conditions:
The RCKM-30S can drill through a variety of geological conditions, including soil, clay, filler, sand, silt, powder layers, and strata containing pebbles, making it a highly adaptable solution for different terrains.
Product Tags:
|
|

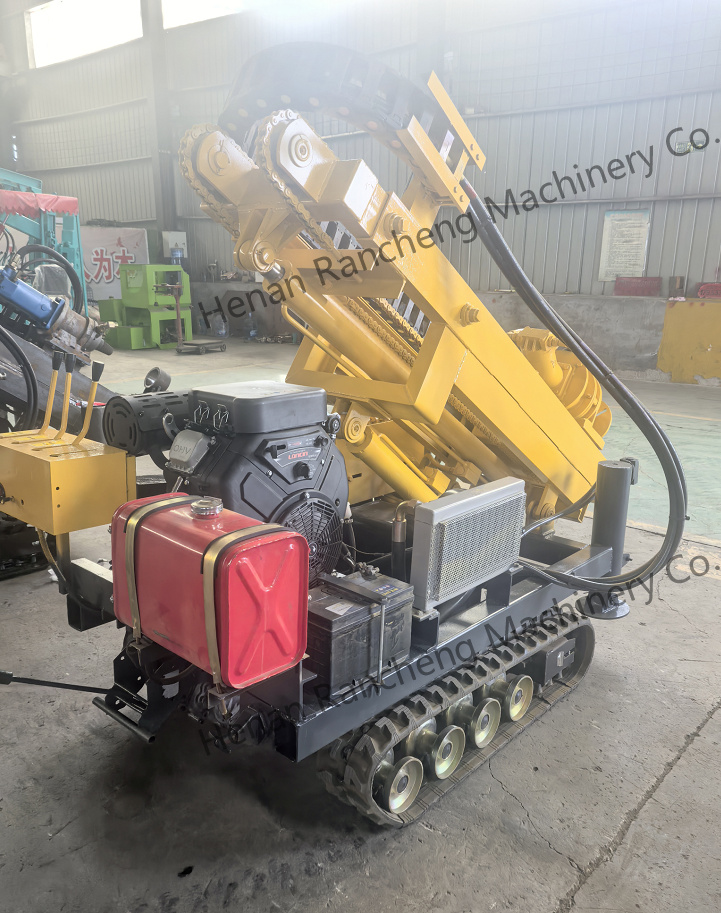

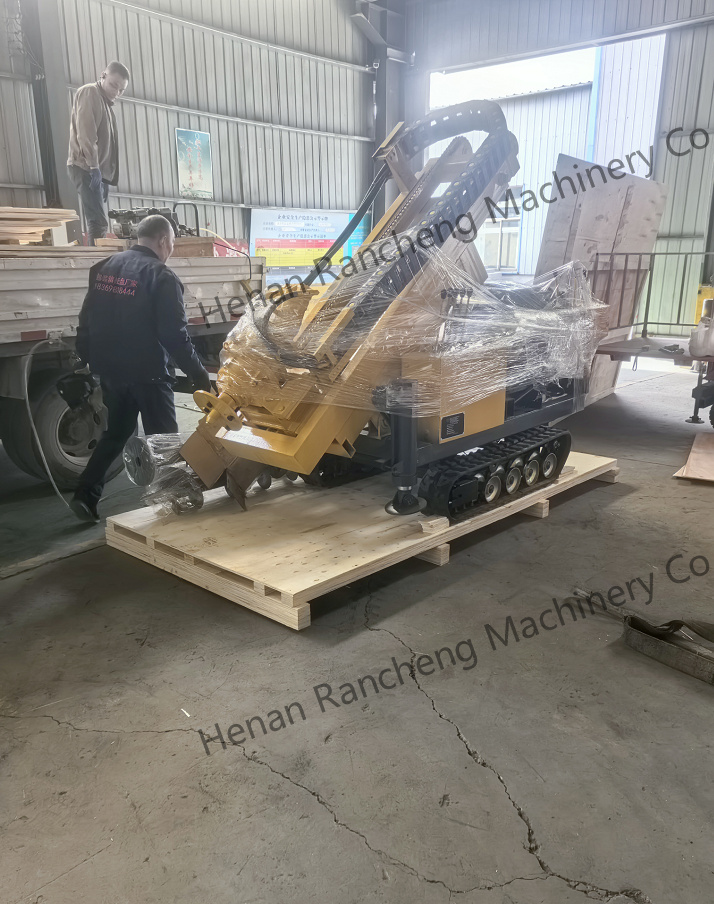

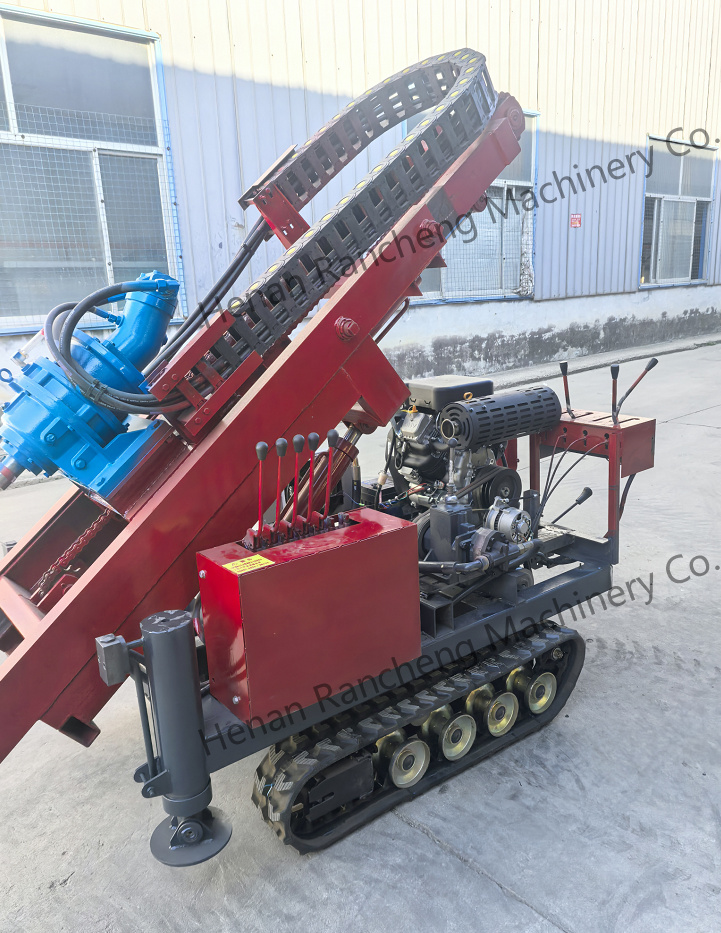

RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation And Mini Pile Drilling Images
|
