Best Selling Four Wheel Trailer Mounted Borehole Drilling Machine 220m Depth 65KW Engine
Machine Introduction
The RCF220W tractor drilling machine offers exceptional versatility and can be easily equipped with a range of accessories, such as air compressors, mud pumps, and systems for dry hydraulic drilling. This adaptability makes it ideal for a variety of tasks, extending beyond traditional water drilling to include diverse hole-forming applications.
It is widely utilized in industrial and agricultural water conservation projects, test wells, exploration drilling, and more. The RCF220W is particularly effective for complex tasks like geothermal heating, foundation reinforcement, and drilling through loose gravel and rock formations.
Built from high-quality materials, the RCF220W boasts a compact and sleek design that not only enhances operational efficiency but also minimizes failure rates and ensures long-term, reliable performance. Its practicality and cost-effectiveness are highly regarded by users, earning it a strong reputation in the market.
Technical Parameters
| Bore diameter(Hammer) | 90-300mm |
| Bore depth | 220m |
| Air consumption | 17-31m³/min |
| Air pressure | 1.7-2.5Mpa |
| Pipe diameter | 76mm/89mm |
| Pipe length | 1m,2m,3m |
| Lifting force | 13T |
| Lifting speed | 2.5m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 24m/min |
| Fast feeding speed | 35m/min |
| Max torque of rotary | 3400-4700Nm |
| Rotary speed | 45-70r/min |
| Hoisting force of winch | 1.4T |
| Mud Pump flow | 250L/min (option) |
| High hydraulic leg | 1.5m |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 4×1.75×2.25M |
| Weight | 5500Kg |
| Diesel engine | 65KW Quanchai engine |
Machine Advantages
The RCF220W tractor drill offers outstanding advantages for deepwater wells and other deep drilling applications, thanks to its impressive depth capabilities. It is equipped with advanced drilling tools, including diamond and tri-cone drill bits, which enhance both efficiency and accuracy during operations.
Designed for ease of use, the RCF220W features a user-friendly control panel that allows operators to manage and monitor the drilling process effortlessly. This thoughtful design reduces the risk of accidents and enhances overall productivity.
The machine’s four-wheel trailer design facilitates smooth transportation across both on-road and off-road environments, making it ideal for remote or rugged terrains. Its compact size allows it to endure harsh weather conditions, while its robust construction ensures stability and durability during operations, providing users with reliable performance.

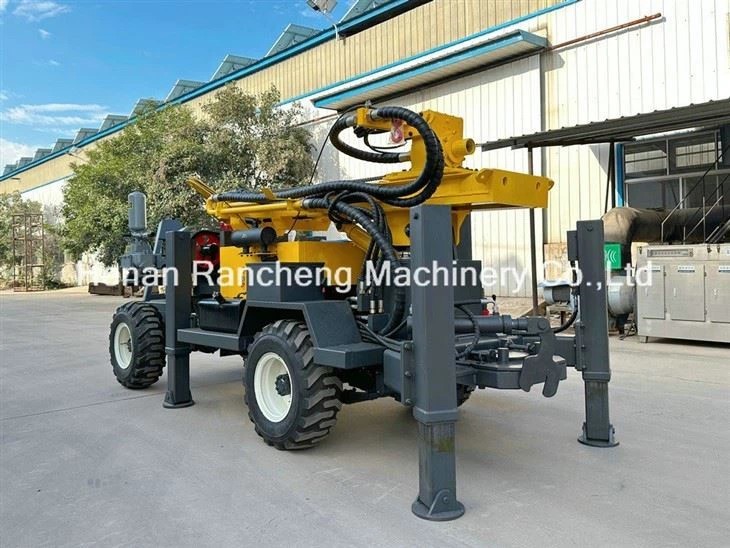

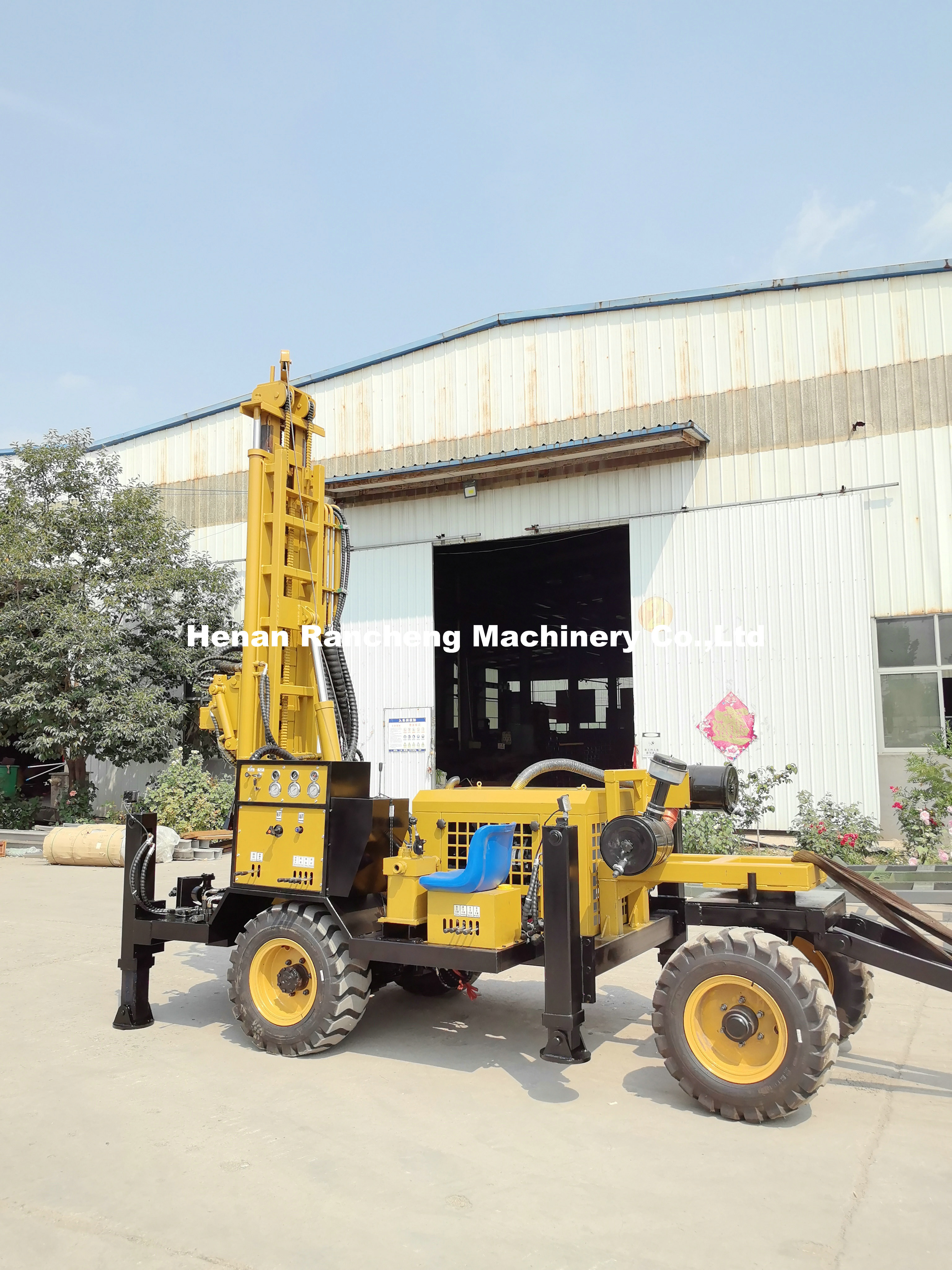

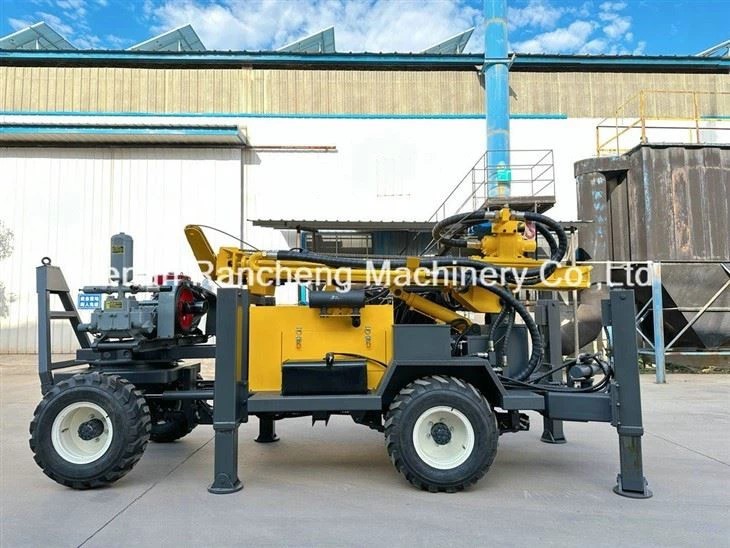

Machine Pictures
