200m 5800Kg hydraulic water well drilling machine with 58KW Diesel Engine and 5T Lifting force
Product Description
This is an efficient and versatile down-the-hole pneumatic water well drilling rig. It is equipped with two motors that can be driven by top rotation and can be used with mud pumps and air compressors. The maximum drilling depth is 200 meters, the diameter range is 100-300 mm, and it is equipped with a 58KW diesel engine. It can drill different strata such as hard rock, clay, soil, and sand. The drilling rig is installed on hydraulic rubber crawlers and is easy to move. In addition, it is equipped with four 1.7-meter-high hydraulic outriggers to facilitate truck transportation.
Application
Adopting newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection,our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.
Technical Parameters
| Model | RCF200C |
| Bore diameter(Hammer) | 90-350mm |
| Bore depth | 200m |
| Air consumption | 17-35m³/min |
| Air pressure | 1.7-3.0Mpa |
| Pipe diameter | 76mm/89mm |
| Pipe length | 3m |
| Push force | 4T |
| Lifting force | 12T |
| Lifting speed | 2.5m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 18m/min |
| Fast feeding speed | 35m/min |
| Max torque of the rotary | 3500-4800Nm |
| Rotary speed | 45-70r/min |
| Mud Pump flow | 250L/min (option) |
| High hydraulic leg | 1.4m |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 4000X1800X2300mm |
| Weight | 5000Kg |
| Diesel engine | 58KW Yuchai |
Product advantages
1.The optimal impact efficiency of each impactor has its matching optimal shaft pressure and speed. During the drilling process, as the number of drill pipes increases, the axial pressure on the impactor also increases. Therefore, the positive and negative axial pressure valves are adjusted during construction to ensure that the impactor can obtain a more suitable axial pressure. At this time, the impact efficiency is higher.
2.The main components and hydraulic system are all famous brands. In addition, the main frame of the rig is made of high-quality high-strength low-carbon alloy steel, which increases the overall strength and is very resistant to wear.
3.This drilling water machine adopt 58KW Yuchai engine.
4.design composite tower, 3.4m long stroke, double cylinder lift capacity 15 ton.

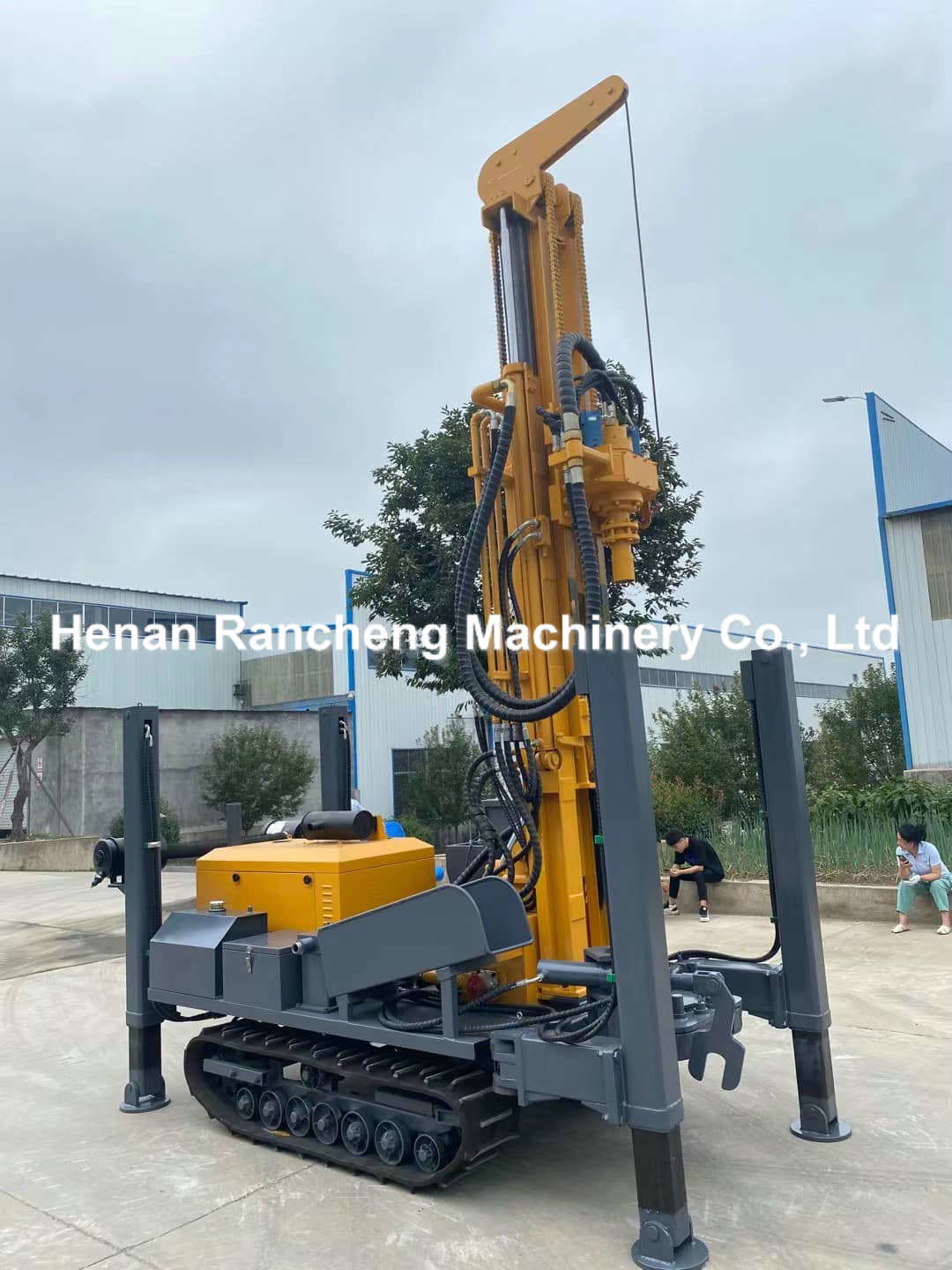

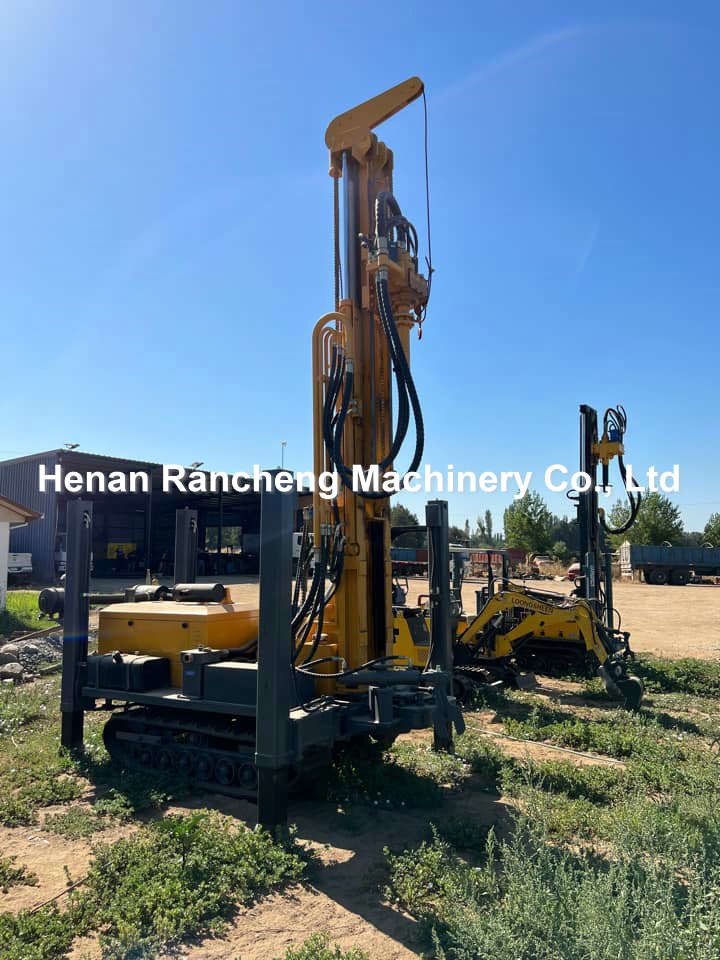

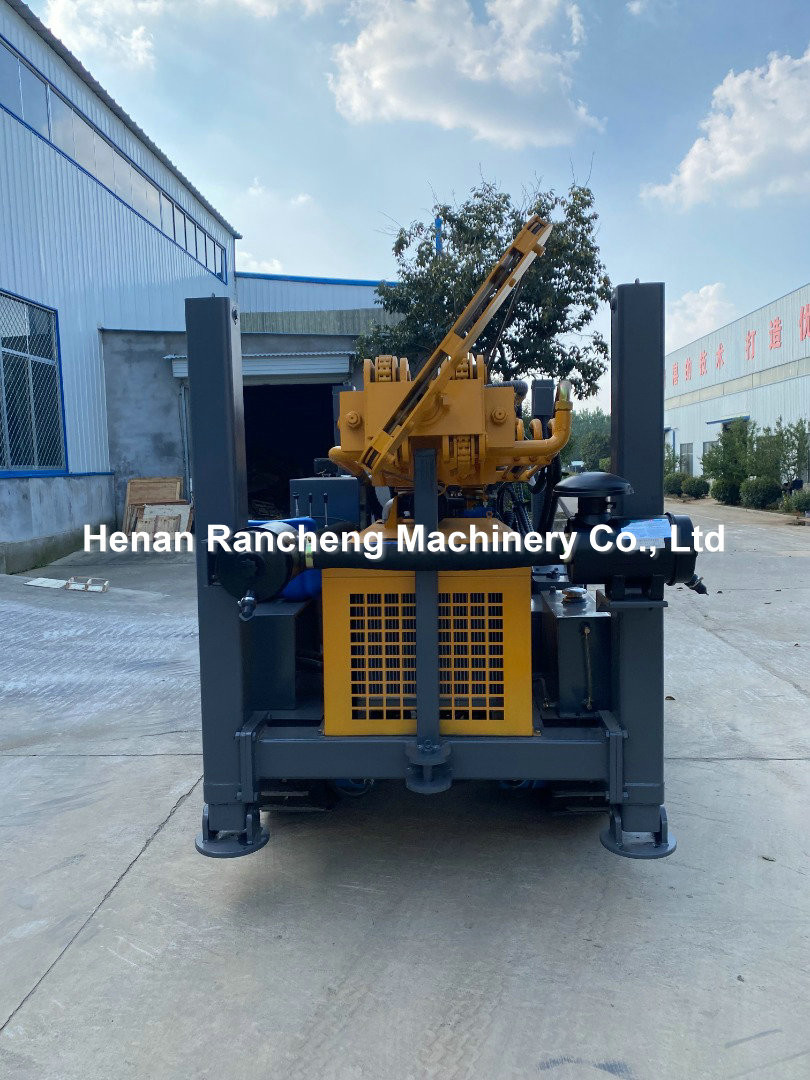

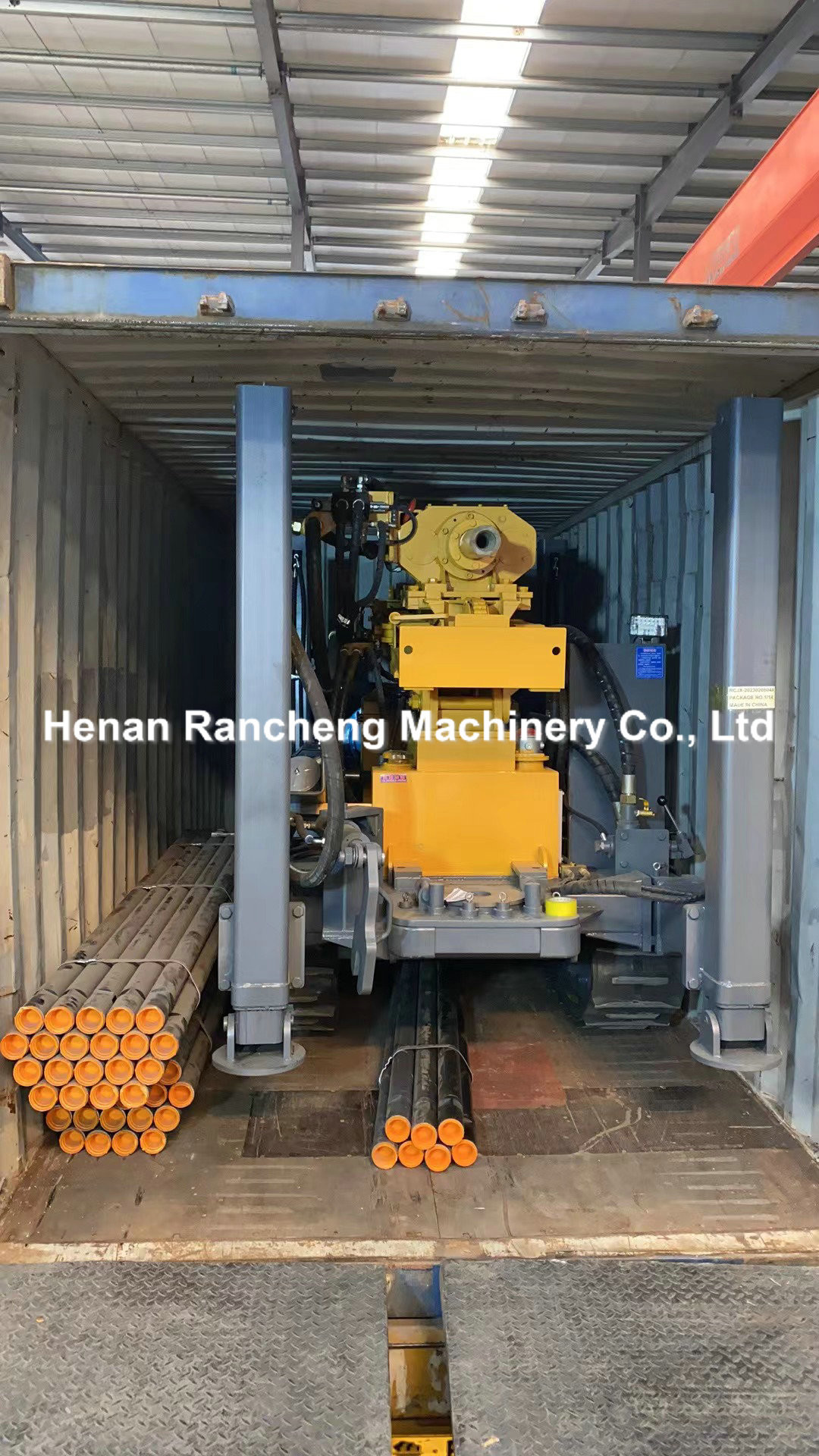

Machine picture display
