180-Meter Deep Water Well Drilling Rig With A 77.3 KW Engine And Crawler Tracks

Brand Name : RanCheng

Model Number : RCF180S

Certification : CE, ISO 9001:2000

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100sets per Month

Delivery Time : 10-15 working days

Packaging Details : It can be shipped by one 20" container

Name : Water Well Drilling Machine

Model : RCF180S

Drilling Depth : 180m

Once-time Advance Length : 2.4m

Pipe length : 2m

Lifting Force : 15T

Rotary Speed : 45-65r/min

Weight : 2700kg

Diesel Engine : 77.3KW Yuchai engine

Max torque of rotary : 4000-4600Nm

Dimension（L*W*H) : 2300×1200×1900MM

Contact Now

180-Meter Deep Water Well Drilling Rig With A 77.3 KW Engine And Crawler Tracks



Machine Description



The RCF180S water well drilling rig is powerful and equipped with a 77.3kw Yuchai diesel engine. The maximum depth can reach 180m and it can achieve a very high power output. The maximum torque can reach 4600Nm and can lift 15t. It is small in size but has strong drilling power.



The RCF180S is compact and light in weight. The whole machine weighs only 2700kg. It is easy and flexible to transport. It can work in narrow areas and can use mud pumps and air compressors for drilling. This machine is equipped with four high-pressure legs for easy loading and unloading.



The RCF180S is equipped with a 2m drill pipe. It is not only suitable for water well drilling but also for geothermal wells, geothermal heat pumps and other engineering projects. The machine is easy to operate and has a wide range of applicability. It is a small water well drilling rig with excellent performance.



Technical Parameters



Bore diameter(hammer) 90-300mm
Bore depth 180m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Once-time advance length 2.4m
Pipe diameter 76mm/89mm
Pipe length 2m
Push force 4T
Lifting force 15T
Max torque of rotary 4000-4600Nm
Rotary speed 45-65r/min
Mud Pump flow 200L/min (option)
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 2300×1200×1900mm
weight 2700kg
Diesel engine 77.3KW Yuchai engine



Advantage



The RCF180S small water well drilling rig adopts a down-the-hole pneumatic design, can be equipped with an air compressor and a mud pump, uses a top drive and a dual-motor rotary head, and is equipped with a 77.35kw Yuchai diesel engine to provide strong power and torque. The maximum depth can reach 180m, and the rubber crawler is suitable for various complex terrains. The centralized full hydraulic control console makes operation faster and improves work efficiency.

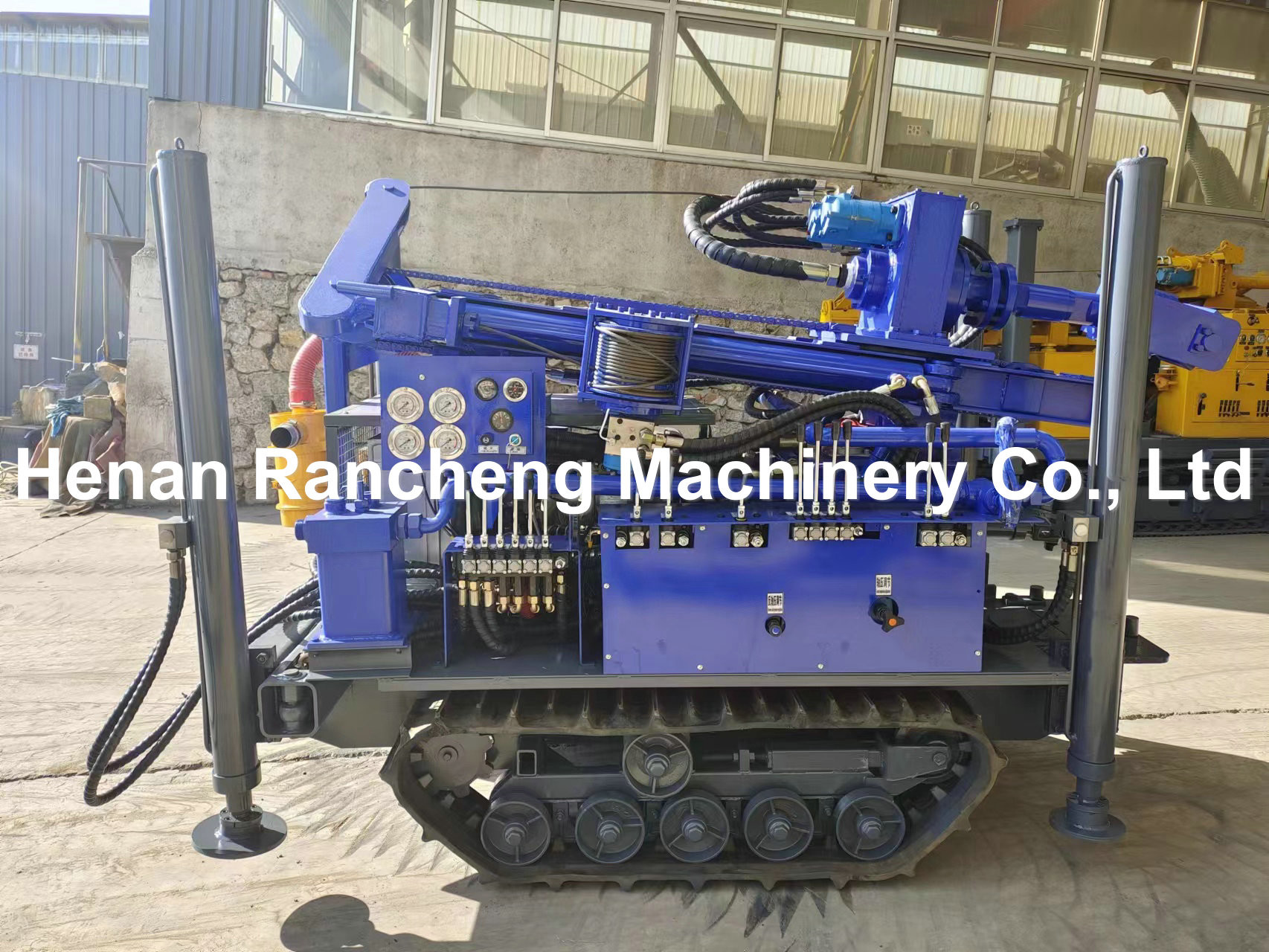

Image Display



180-Meter Deep Water Well Drilling Rig With A 77.3 KW Engine And Crawler Tracks180-Meter Deep Water Well Drilling Rig With A 77.3 KW Engine And Crawler Tracks180-Meter Deep Water Well Drilling Rig With A 77.3 KW Engine And Crawler Tracks180-Meter Deep Water Well Drilling Rig With A 77.3 KW Engine And Crawler Tracks
